Name: 4-position entry disc | Door for TBH hive | 75 mm diameter
Brand: Apiobi
SKU: 1819
Price: 1.90 EUR
Availability: InStock

4-position entry disc | Door for TBH hive | 75 mm diameter

🆔 Design No 1819

⚙︎ Formats : STL

𐊵 Version : 1.0

⦸ No AI - No virus

✏︎ Designer : M@t - apiobi

🗓 Published on 3 April 2026

⊙ Views : 408

💬 Exchanges : 0

1,90 €

Premium quality
Low prices direct from the designer
Instant Download
Secure payment with no minimum purchase required

Description

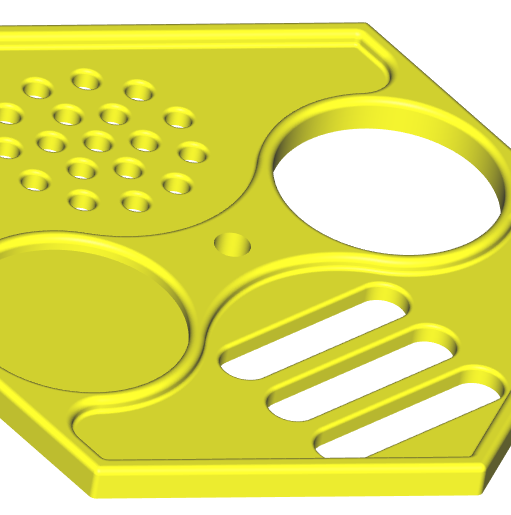

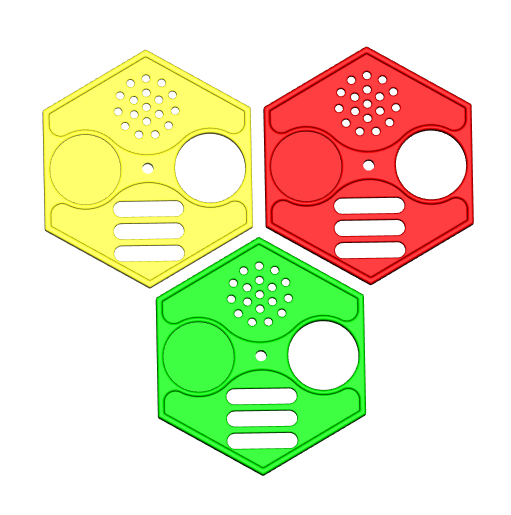

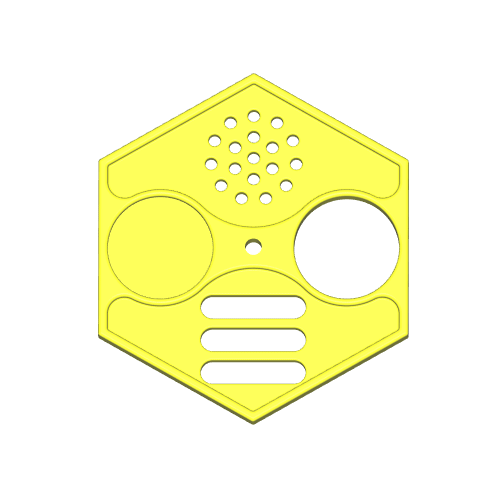

4-position circular entrance door for TBH hives or other models.
This model is designed to fit one or all of the 22-mm-diameter holes, such as those found in Philip Chandler’s Top Bar hives. Suitable for controlling the entrance to nucs and nucleus colonies.
Its rigid structure holds the disc firmly against the wood.

Versatile, reliable access control with 4 positions : total closure, vented closure for ventilation, limited opening for bees (to prevent Asian cockroaches, etc.) and total opening,
Diameter : 75 mm
Positioning sn the hive: the center of the disc is 19.5 mm from the center of the 22 mm hole. Above or below depending on hole location.
Mounting using a screw or small metal hook and a metal washer

Technical Tips for 3D Printing

Material: PETG, because it's a neutral material, or ASA if exposed to intense sunlight.
My recommendation: if you want to take plastic neutrality a step further, which is almost impossible with manufactured products, opt for PETG certified for food contact.
PLA: not at all suitable for this purpose
Orientation: Easy to print flat in 0.2 mm
